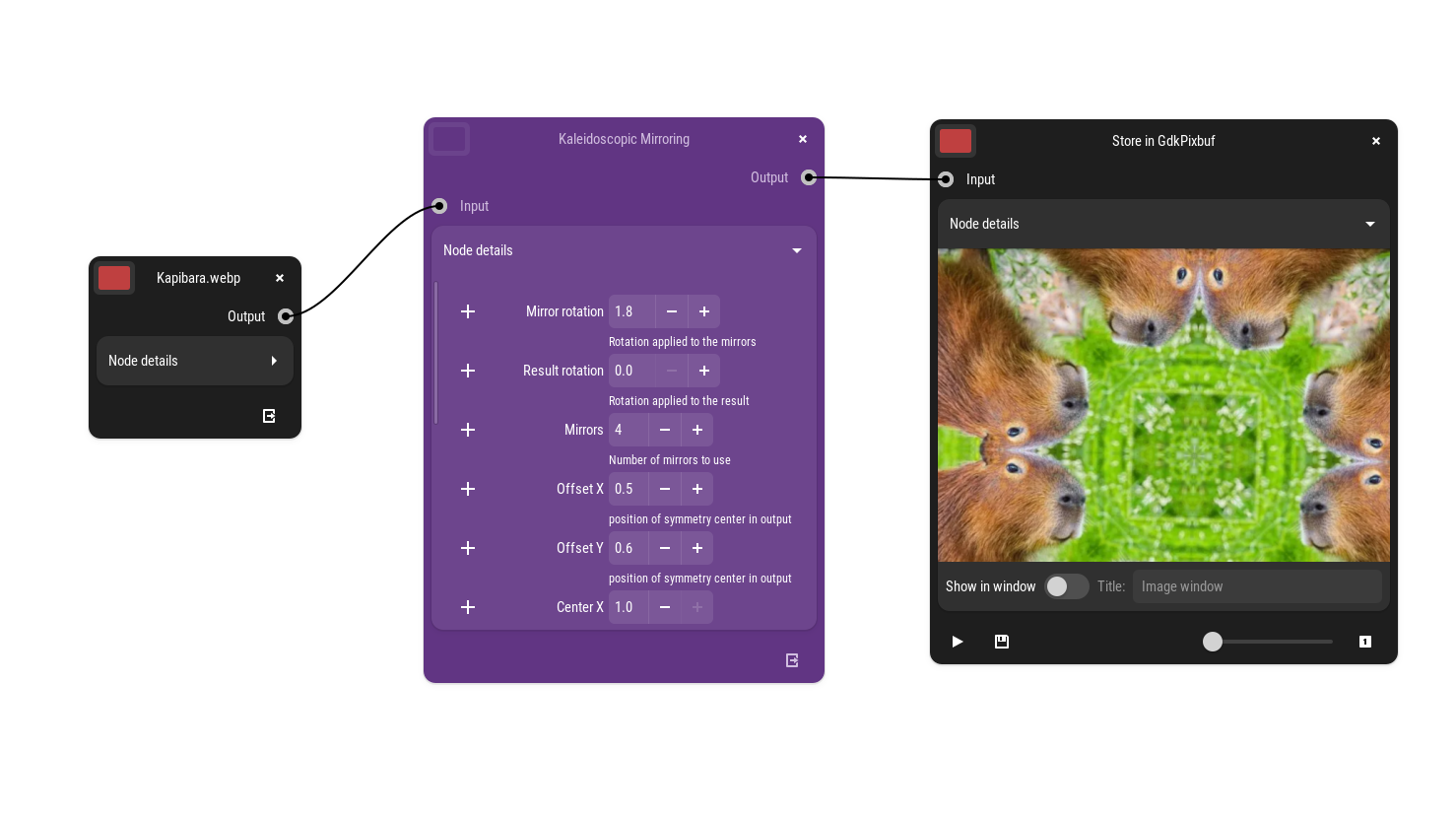

Kaleidoscopic Mirroring

gegl:mirrors

Create a kaleidoscope like effect.

Operation pads

This operation exposes the following data pads, defining how it receives, processes, and emits image data:

Input

Output

Operation properties

Mirror rotation

gdouble

Rotation applied to the mirrors.
Default 0.00
Value range 0.00 • • 180.00.

Result rotation

gdouble

Rotation applied to the result.
Default 0.00
Value range 0.00 • • 360.00.

Mirrors

gint

Number of mirrors to use.
Default 6
Value range 2 • • 24.

Offset X

gdouble

position of symmetry center in output.
Default 0.50
Value range 0.00 • • 1.00.

Offset Y

gdouble

position of symmetry center in output.
Default 0.50
Value range 0.00 • • 1.00.

Center X

gdouble

X axis ratio for the center of mirroring.
Default 0.00
Value range -1.00 • • 1.00.

Center Y

gdouble

Y axis ratio for the center of mirroring.
Default 0.00
Value range -1.00 • • 1.00.

Trim X

gdouble

X axis ratio for trimming mirror expanse.
Default 0.00
Value range 0.00 • • 0.50.

Trim Y

gdouble

Y axis ratio for trimming mirror expanse.
Default 0.00
Value range 0.00 • • 0.50.

Zoom

gdouble

Scale factor to make rendering size bigger.
Default 100.00
Value range 0.10 • • 100.00.

Expand

gdouble

Scale factor to make rendering size bigger.
Default 1.00
Value range 0.00 • • 100.00.

Clip result to input size

gboolean

Default true

Wrap input

gboolean

Fill full output area.
Default true
